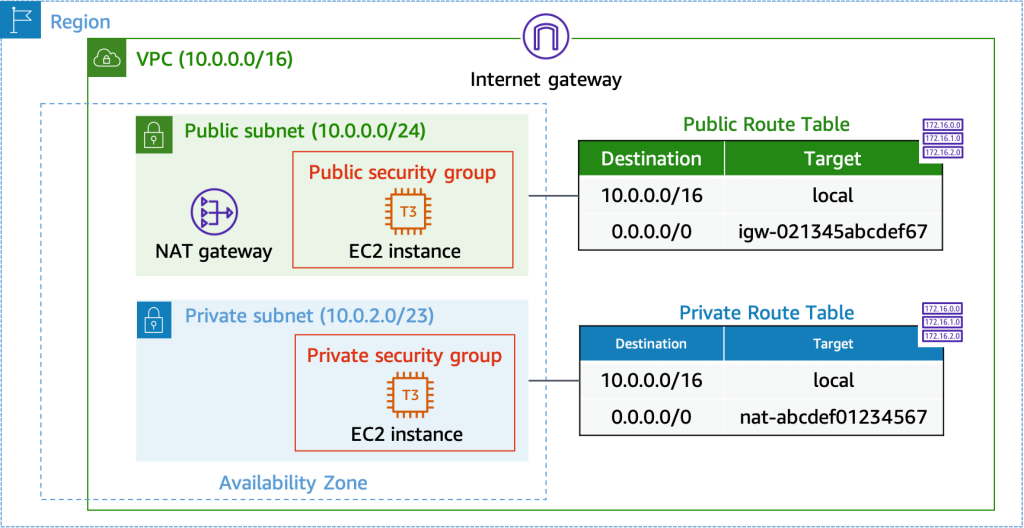

Lab 2 – Build your Amazon VPC infrastructure

This lab follows Compute Module, which focuses primarily on Amazon EC2, and Networking Part 1 Module, which focuses on Amazon VPCs, subnets, and routing.

Task 1 : Create an Amazon VPC in a Region

Task 2: Create public and private subnets

Task 3 : Create an internet gateway

Task 4 : Route internet traffic in the public subnet to the internet gateway

Task 5 : Create a public security group

Task 6 : Launch an Amazon EC2 instance into a public subnet

Task 7 : Connect to a public instance via HTTP

Task 8 : Connect to the Amazon EC2 instance in the public subnet via Session Manager

Task 9 : Create a NAT gateway and configure routing in the private subnet

Task 10 : Create a security group for private resources

Task 11: Launch an Amazon EC2 instance into a private subnet

Task 12: Connect to the Amazon EC2 instance in the private subnet

Optional Task 1 : Test connectivity to the private instance from the public instance

Optional Task 2 : Retrieve instance metadata
